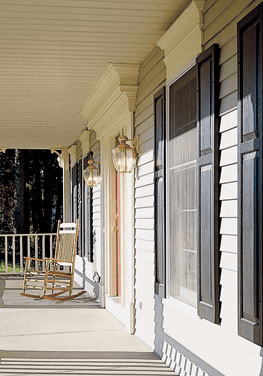

Impeccable Style with Easy Upkeep
Properly installed aluminum soffit provides essential ventilation and air circulation to reduce excess moisture that can cause rotting and decay of the roof’s structure. It promotes directional air movement through the eaves and rafters of your home, helping it to stay in great shape both inside and out.
Essential Ventilation
Properly installed soffit and fascia promote directional air movement through the eaves and rafters of your home. It eliminates moisture that can cause rotting and decay of the roof’s structure, helping your home to stay in great shape inside and out.
Superior Performance and Appearance
Featuring an exceptionally durable finish, Hi-Tensile soffit is made from a specially formulated alloy that performs like a heavier gauge material.
- Soffit panels are roll formed from a commercial-grade aluminum alloy sheet and coated with protective layers, including a corrosion-resistant formula and a thermosetting polyester coat
- Substantial 1/2″ V-groove increases structural integrity
- Low-luster, satin finish provides excellent resistance to surface marring and scuffing
- Will never rot, peel or flake like painted or stained wood – requires minimal upkeep
Increased Tensile Strength
Tensile strength, which is the amount of stress a material can withstand, plays an important role in the durability and performance of residential soffit.
High Tensile Is Determined With Two Measurements:
Ultimate Tensile Strength is the maximum force (tension, compression or shearing) applied to a material that results in material failure, such as cracking, splitting and deforming.
Yield Tensile Strength is the force (tension, compression or shearing) that is applied to a material and results in some type of material deformity; the material does not fail and it may return to its normal shape when the force is removed.
Deluxe Fascia
Deluxe fascia features a beautifully protective Poly coating that’s built to last. Its low-luster finish and smooth texture will enhance the hard-to-reach trim areas of your home with classic good looks.
Simple Upkeep
Built with easy upkeep in mind, Gentek aluminum soffit and fascia feature a heavy-duty construction and resilient finish that requires minimal maintenance. Just a simple rinse with your garden hose will remove most airborne dust and dirt, keeping your raffling and trim areas looking fresh and clean.
Soffit Profiles
Available in 5 profile options:
12" T4 - Solid
Specifications:
12" Exposure per Panel
12' Length
Poly Finish
Smooth Texture
Packaging:
16 pcs. per ctn.
1.92 sq. per ctn.

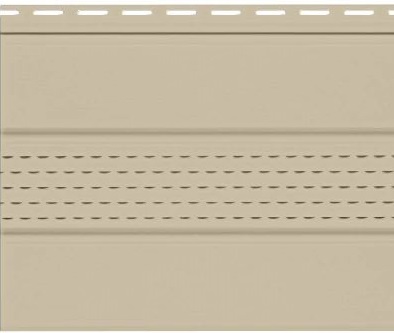

12" T4 - Center Vented
Specifications:
12" Exposure per Pane
l 12' Length
Poly Finish
Smooth Texture
3.9 sq. inches ventilation per lineal foot
Packaging:
16 pcs. per ctn.
1.92 sq. per ctn.

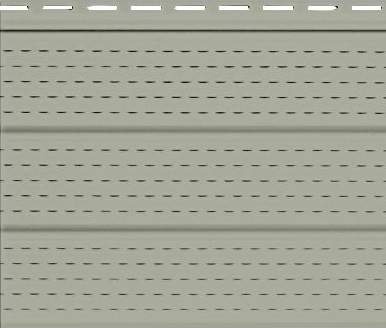

12" T4 - Fully Vented
Specifications:
12" Exposure per Panel
12' Length
Poly Finish
Smooth Texture
11.6 sq. inches ventilation per lineal foot
Packaging:
16 pcs. per ctn.
1.92 sq. per ctn.

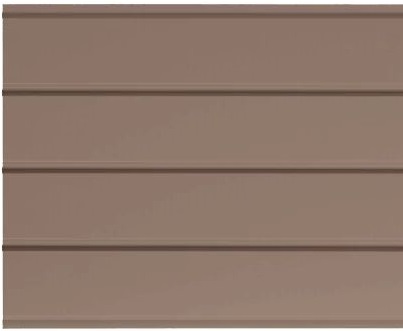

16" Quad 4 - Solid
Specifications:
16" Exposure per Panel
12' Length
Poly Finish
Smooth Texture
Packaging:
12 pcs. per ctn.
1.92 sq. per ctn.

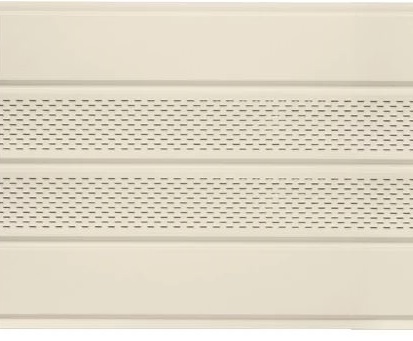

16" Quad 4 - Center Vented
Specifications:
16" Exposure per Panel
12' Length
Poly Finish
Smooth Texture
7.8 sq. inches ventilation per lineal foot
Packaging:
12 pcs. per ctn.
1.92 sq. per ctn.
Fascia Profiles

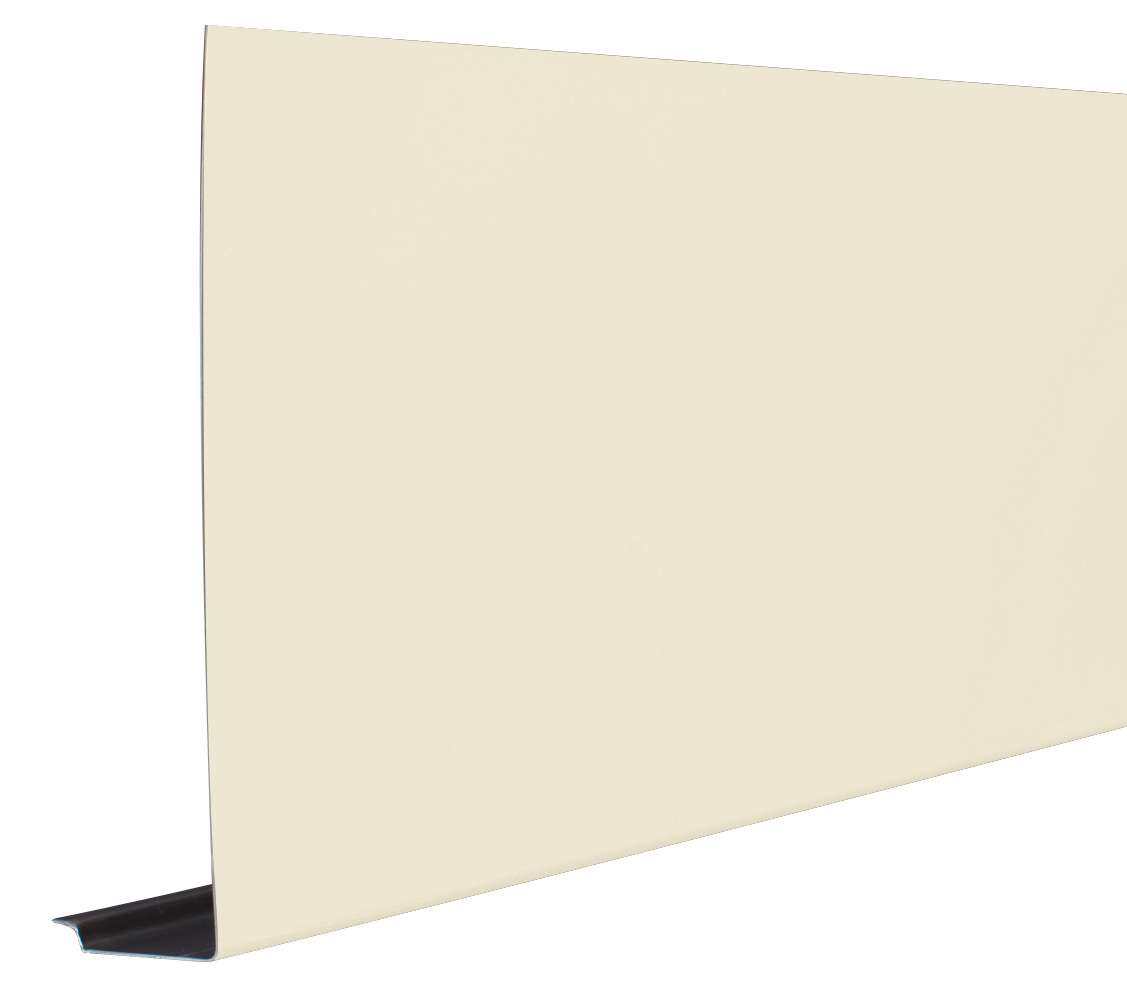

6" Fascia
Specifications:
16" Exposure per Panel
12' Length
Poly Finish
Smooth Texture
Packaging:
12 pcs. per ctn.
1.92 sq. per ctn.
8" Fascia
Specifications:
16" Exposure per Panel 12' Length
Poly Finish
Smooth Texture
7.8 sq. inches ventilation per lineal foot
Packaging:
12 pcs. per ctn.
1.92 sq. per ctn.
Color Defines The Design
Gentek colors keep personal style in mind. Deep, saturated palettes in cool neutrals and bold shades, along with light-changing grays and softer hues, will transform the appearance of your home with artisan style.
Classic Colors
Easy Color-Match System
Our Color Clear Through® system makes it easy to find the perfect color match for your exterior design. This special collection of colors ensures that all Gentek products – siding, soffit, fascia, trim, and rainware – will beautifully match throughout our vinyl, aluminum and steel product lines.
Choose your siding color with ease
Choosing the right siding colors can be one of the most challenging parts of updating your home’s exterior. How will each shade look with your existing materials and overall style? The Gentek Visualizer helps take the uncertainty out of the process, allowing you to explore a range of siding color options and instantly see how they’ll look on your home.
Resources
Colors may not be available in all markets; see your sales representative for details. Colors will vary based on user’s screen settings. We recommend that you make final color selections using actual product samples
* Available in 16′ only. ** Available in 12′ only.
